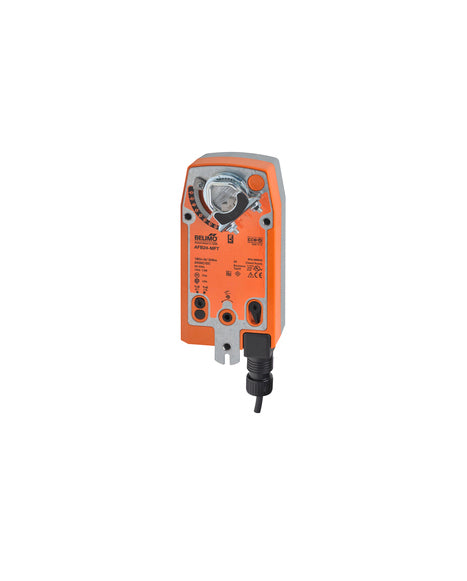

Afb24-mft95 | bélimo | atuador de amortecedor
moodyblue.supply
$534.00
Atuador amortecedor, 180 pol-lb [20 Nm], retorno por mola, CA/CC 24 V, MFT/programável, 0...135 Ω
Especificações
- Tensão CA/CC CA/CC 24 V
- Consumo de energia (em funcionamento) 7,5 W
- Consumo de energia (retenção) 3 W
- Consumo de energia para dimensionamento de fio 10 VA
- Torque 180 pol-lb [20 Nm]
- Tipo de controle 0...135 Ω
- Direção do movimento Motor selecionável com chave 0/1
- Sentido de rotação (à prova de falhas) Reversível com montagem CW/CCW
- Manivela hexagonal de 5 mm de acionamento manual (3/16" Allen), fornecida
- Ângulo de Rotação 95
- Tempo de Funcionamento (Motor) 150 s / 90°
- Faixa de Tempo de Funcionamento (Motor) 70...220 s
- Tempo de execução (à prova de falhas) <20 s
- Categoria de proteção IP54
- Grau de Proteção NEMA NEMA 2
- Gabinete Tipo UL Gabinete Tipo 2
- Temperatura ambiente -22...122°F [-30...50°C]
-
Baixe a Folha de Dados
Baixe o Guia de Instalação
