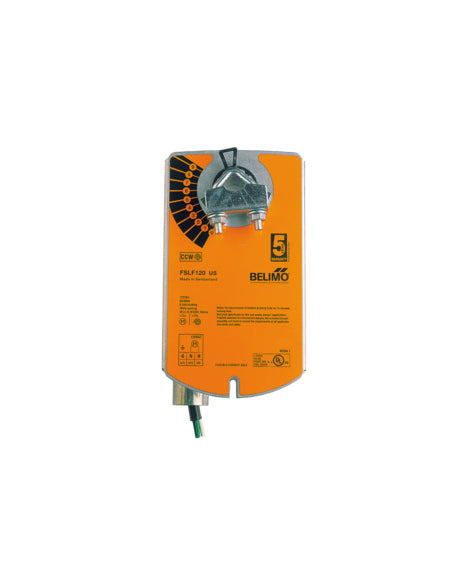

FSLF120 US | BELIMO | FIRE&SMOKE DAMPER ACTUATOR
- Sale price
- $428.00
- Regular price
-
- Regular price
- $428.00
- Unit price
- per
Guaranteed safe checkout
Couldn't load pickup availability
Product Description
Product Description
Specifications
- Voltage AC/DC AC 120 V
- Power Consumption (Running) FS 18 VA
- Power Consumption (Holding) FS 4 W, 5.5 VA (50 Hz 8 VA), End stop 27 VA, 0.25 A slow blow fuse *
- Torque 30 in-lb [3.5 Nm]
- Control Type On/Off
- Direction Of Motion Motor selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe) Reversible with cw/ccw mounting
- Angle of Rotation 95
- Running Time (Motor) 15 s / 90°
- Running Time (Fail-safe) <15 s
- Protection category IP30
- Degree Of Protection NEMA NEMA 1
- Enclosure Type UL Enclosure Type 1
- Ambient Tempreture 32...122°F [0...50°C ]
-
Download the Data Sheet
